ULTRA^®

Extruders

Engineered extrusion solutions designed for longevity, accuracy, and ease of control.

Home | Products & Solutions | Extruders | ULTRA

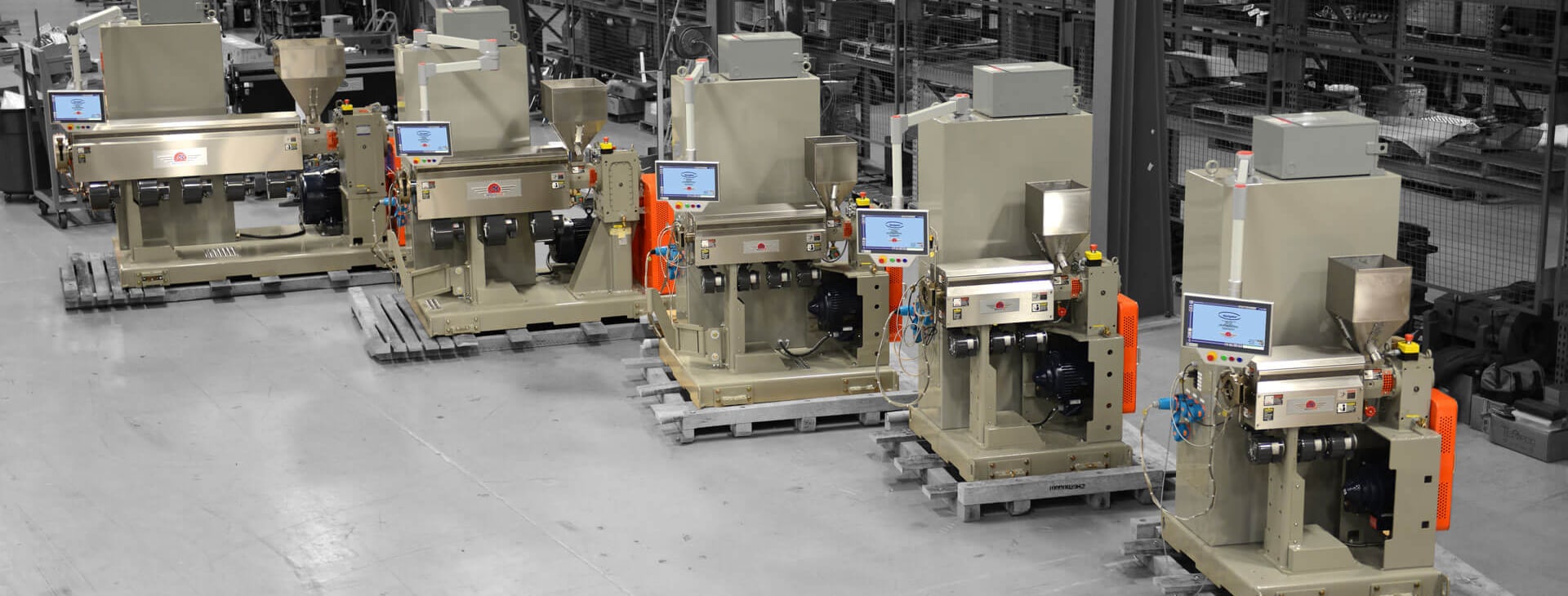

American Kuhne Ultra Extruder

Our ULTRA Extruders are available in 16 different sizes and hundreds of configuration possibilities to accommodate your production needs. Talk to a Sales Manager about our industry leading service and support. We complete a comprehensive wet test with your resin before we ship it to you to make sure it’s perfect when it arrives.

FEATURES

Heated single bolt clamp
Cast aluminum cooling shrouds and heaters
Full surround water-cooled feed throat
Rear-mounted taper roller thrust bearing
One-piece gearbox casting
Stainless steel hopper

Request A Quote Contact Us

Graham Engineering ULTRA

Owners of the American Kuhne Brand

We offer a versatile ULTRA extruder machine with top-of-the-line parts, innovative systems and base, highly customizable product options, and user-accessible extruders that are efficient and with safety features built right in. And the integrated control system choices fit your needs with varying optimization and customization levels you can only find with Graham.

Take a Closer Look

American Kuhne ULTRA Extruder Difference

Our ULTRA Extruder line offers the proven technology and customized features required for your application, but we don’t stop there. We run every ULTRA extruder under load, with your specific or a similar stock resin, before we even ship it out. That comprehensive wet test validates mechanical and electrical functions. That also tests the pressure indicator and programs, auto-tunes the temperature controllers, and allows us to configure the drive parameters fully.

All medium and small machines also feature pluggable barrel thermocouples for quick disconnect and change; switchable die-plugs that eliminate breakers outside of the machine; and fuses instead of circuit breakers for improved short-circuit rating.

With our three-year warranty covering defects in materials and workmanship, and our intelligently designed spare parts packages, the ULTRA gives you the smoothest start-up possible and continued peace of mind.

Download a Product PDF >

SPECS

Standard heated single bolt clamp
Cast aluminum cooling shrouds
Deep fin, bolt-on cast aluminum heaters
Full surround water-cooled feed throat
Rear-mounted taper roller thrust bearing
Heavy wall, one-piece gearbox casting

OPTIONS

High temperature and corrosion resistant features available
Navigator XC100, XC200, or XC300 PC-based control
Heater/coolers capable of 650 or 900 degrees F
Spare parts tailored to customer needs
One or two die/head supports
3-position swing hopper on/off/dump
Air, Backdraft or Water cooled options
Custom base designs and heights to suit customer’s application
Replaceable feed section liners
Grooved feed throat extruders

Example Applications

Medical Options

Essential Supplies

The ULTRA produces life-saving medical equipment such as ventilator tubes and catheters for vascular and radiology procedures.

Blue, yellow, red, gray, orange and green rubber wires

Utility Uses

Extrusion Applications

Graham’s ULTRA extrusion technology produces items companies need to make utilities possible for consumers, like wires and cables.

Various Materials

Unlimited Possibilities

The ULTRA design makes this extrusion machine a highly customizable option for your plant. Material options include polymers, rubber, and silicone.

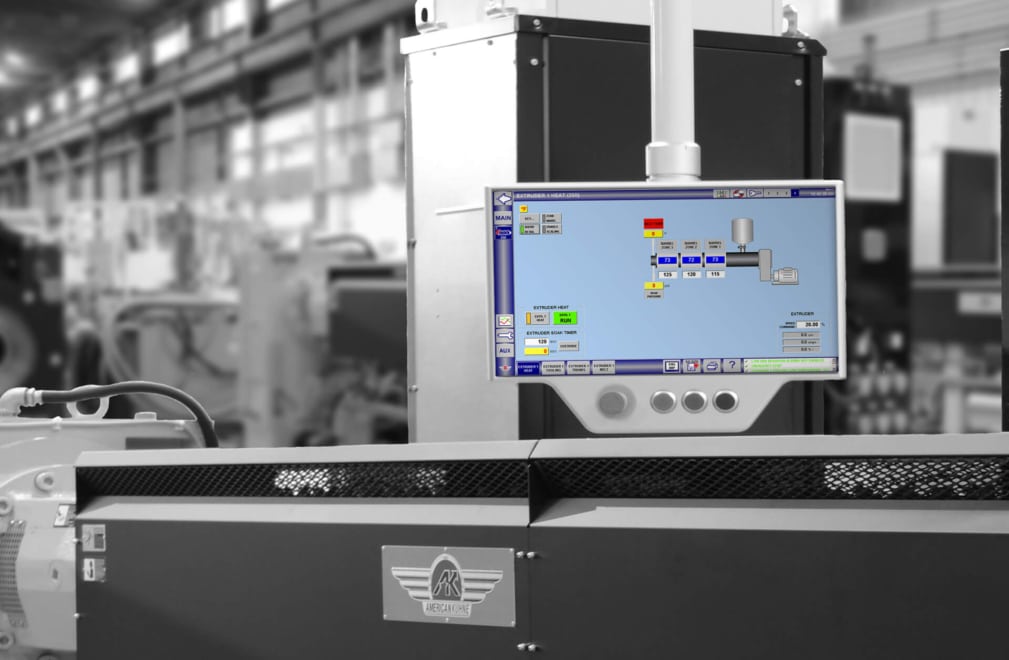

XC Navigator^®

Ultimate Control

The XC Navigator system enables operators to easily monitor and control functionality, from closed-loop barrel PID heat/cool control, to clamp and die zone control, to heater burnout detection/alarm, and more. Our team can customize our proprietary, proven XC Navigator Extrusion System Controls to fit your exact operation and needs.

Learn More
